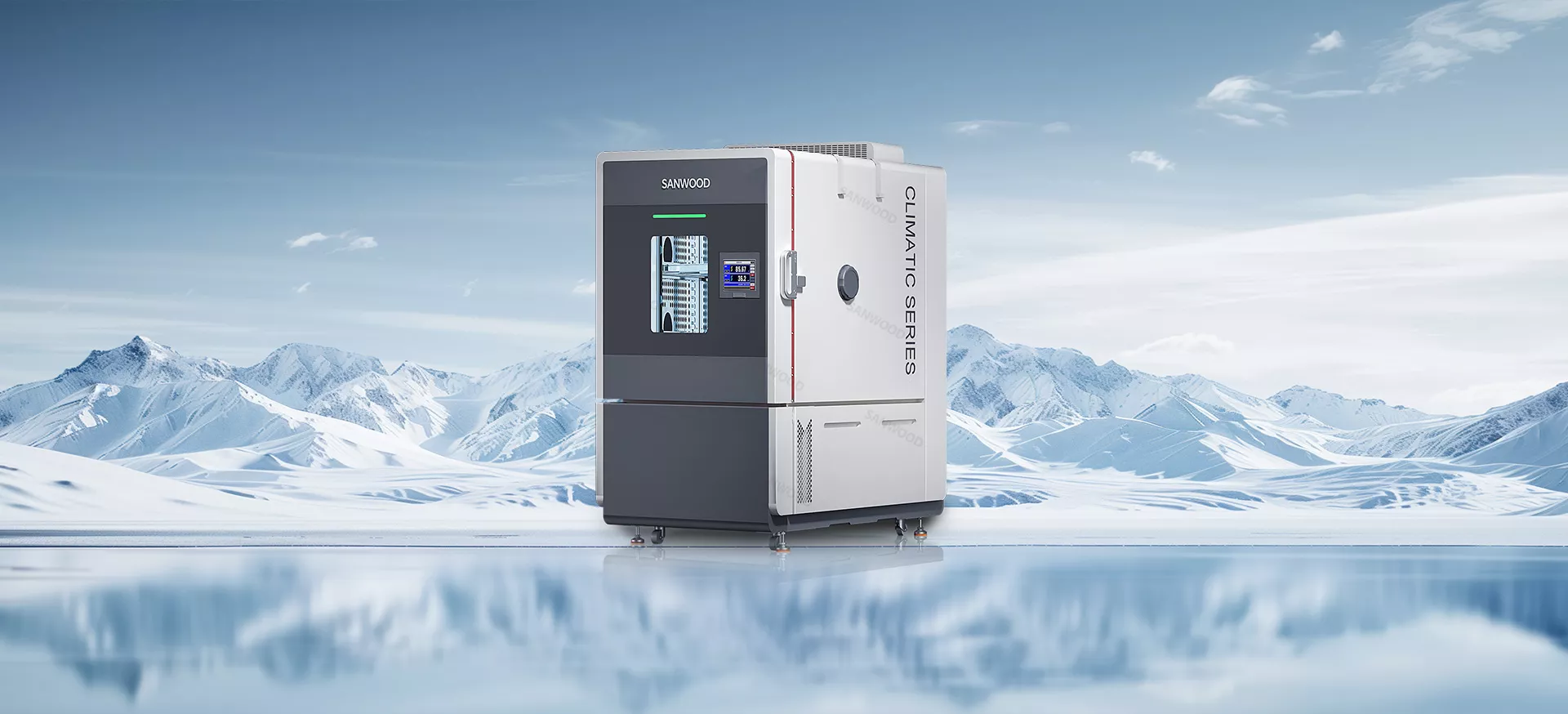

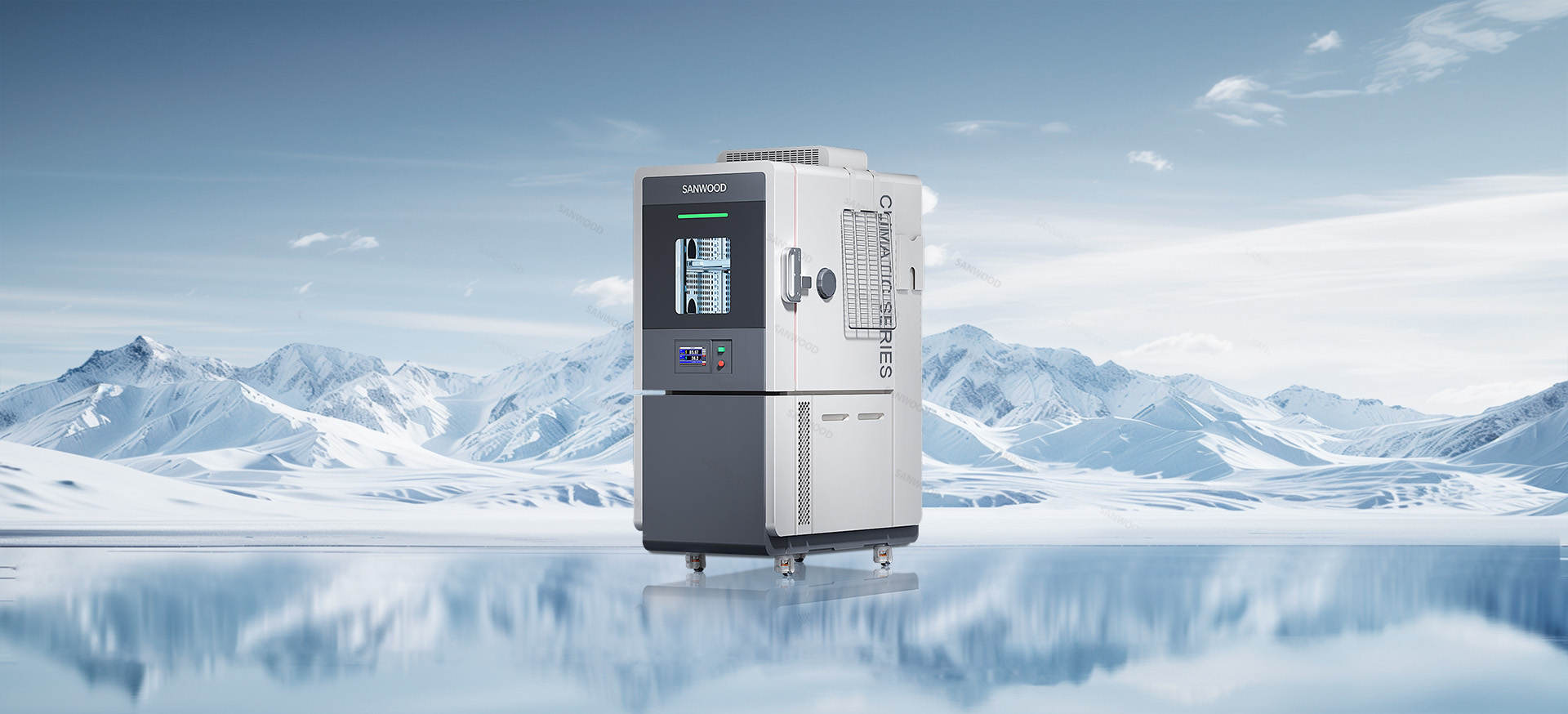

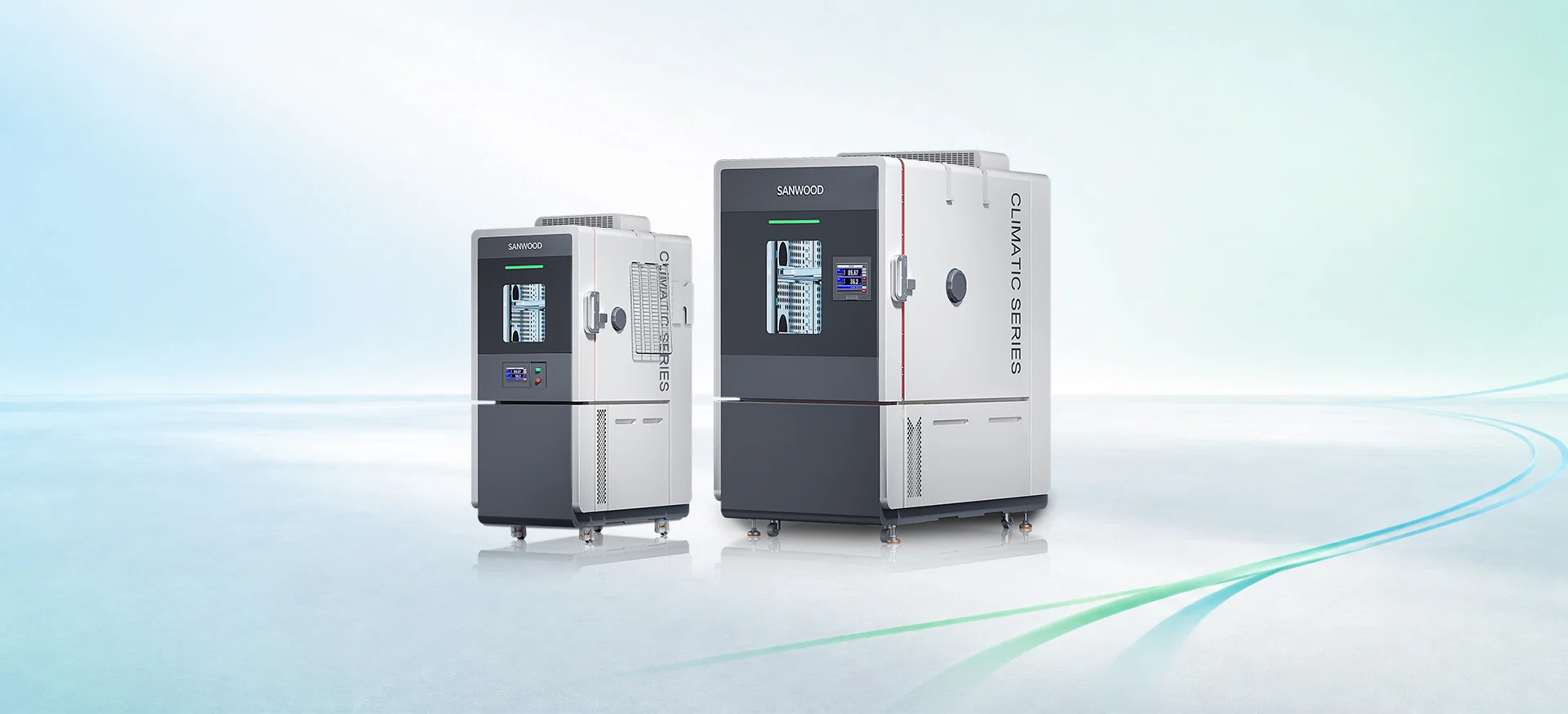

Temperature Humidity Test Chamber

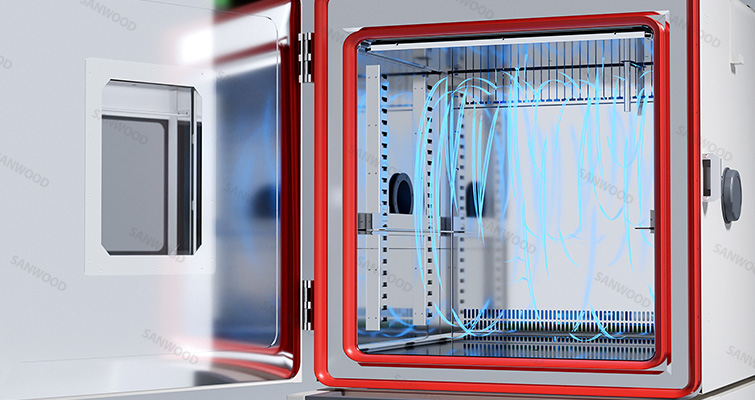

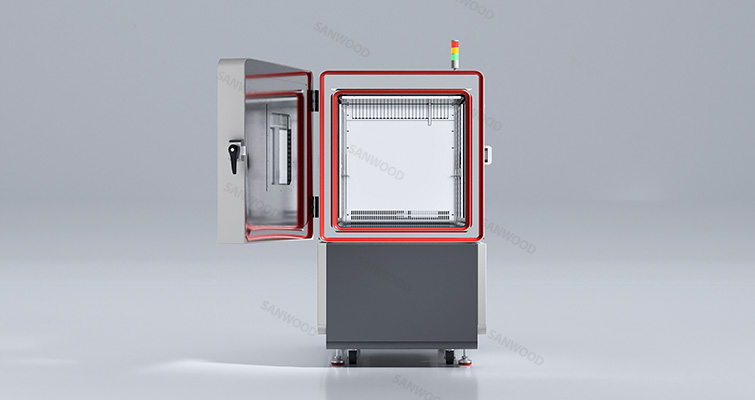

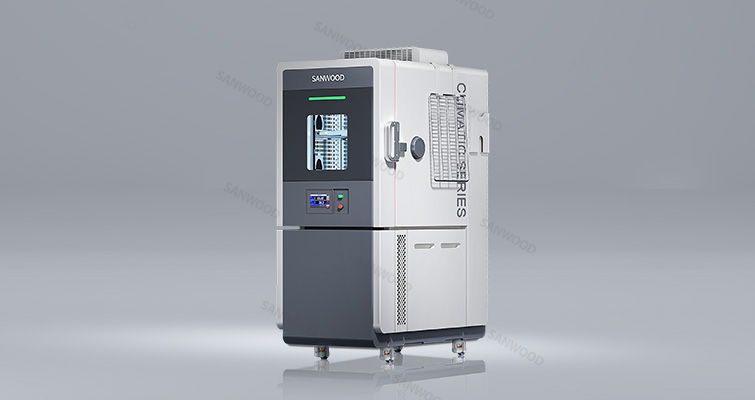

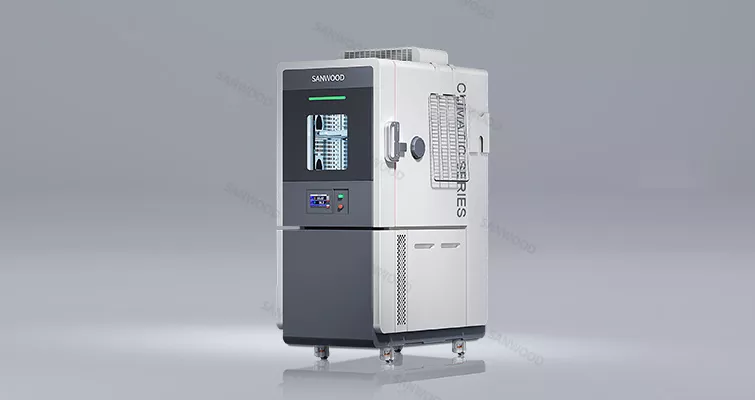

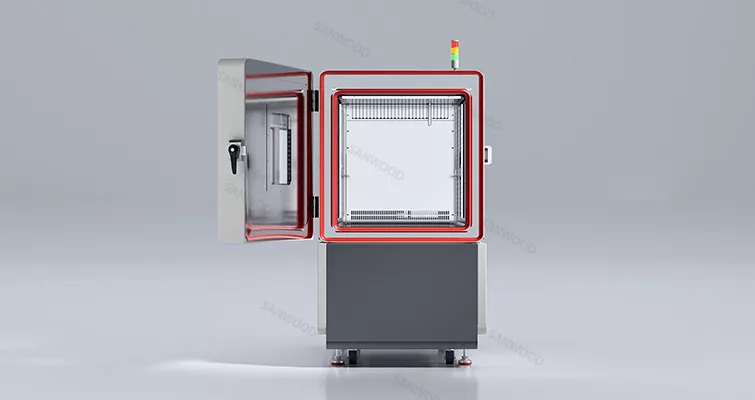

The temperature humidity test chamber is a high-performance and energy-saving environmental test chamber that provides flexible configurations for simulating sample environmental tests under different climatic conditions.

• •Adopting advanced temperature and humidity control system, with high control accuracy and stability.
• •Operating system with multi-language system, can be switched according to the need.
• •Equipped with programmable control function, it can set different temperature and humidity change curves and test times
• •Local installation and debugging teams can be arranged on-site for debugging and installation
• •It has programmable control function, can set fixed values/programs, can set different temperature and humidity change curves and test times
• •Designed and manufactured in accordance with international standards, with high reliability and stability

The temperature humidity test chamber belongs to the same series as the high and low temperature alternating humidity test chamber and is an essential testing equipment in fields such as aviation, automotive, home appliances, and scientific research.

The temperature humidity test chamber is widely used for product testing in various fields such as electronics, electrical appliances, mobile phones, communications, instruments, vehicles, plastic products, metals, food, chemistry, building materials, medical, aerospace, etc. For example:

• •Electronic semiconductor industry: used to test the performance and stability of electronic components and equipment under different temperature and humidity conditions, such as chips, mobile phones, computers, and other consumer electronics products.
• •Materials Science: Used to evaluate the physical and chemical properties of materials, especially polymers, coatings, composite materials, etc., in high humidity and high temperature environments.
• •Automotive industry: used to test the durability and reliability of automotive components and vehicles under different climatic conditions.

By simulating different temperature and humidity environments, the constant temperature and humidity test chamber helps enterprises and research institutions evaluate product reliability, improve product quality and reliability performance.

The testing standards for temperature humidity test chambers usually vary depending on the industry and product. The following are some common standards and specifications:

• •ISO 16750： The International Organization for Standardization (ISO) standards for automotive electronic equipment include testing requirements for environmental conditions.
• •MIL-STD-810： The military standards developed by the US Department of Defense cover various methods of environmental testing, including high temperature and high humidity testing.
• •IEC 60068-2-1 "Environmental testing - Part 2: Test methods - Test A: Low temperature" specifies the methods and requirements for low temperature testing.
• •ASTM D 2247： The American Society for Testing and Materials (ASTM) standard involves testing the performance of coatings in high humidity environments.

The temperature humidity test chambers also complies with testing standards such as IEC 60068, ANSI/TIA/EIA 455-162,  BS EN 61300-2-48, JIS Z 0202, etc

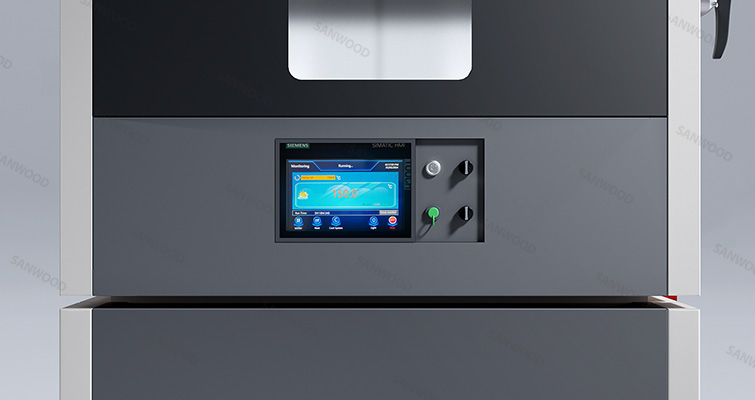

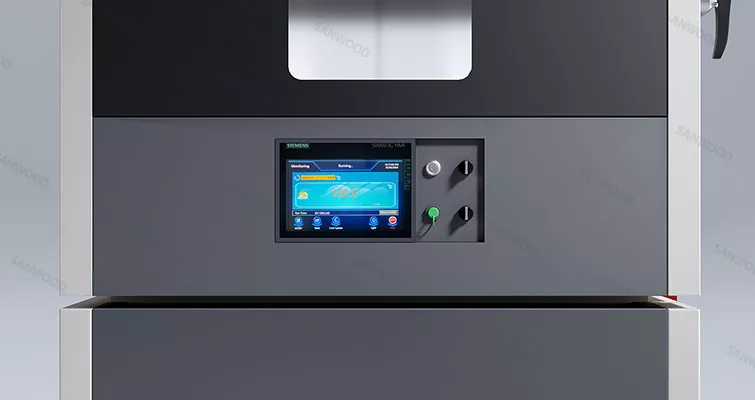

The controller system of Sanwood test chamber adopts world leading hardware and software systems to ensure that the test box operates under preset conditions, providing accurate and reliable experimental data to help users achieve precise control and data collection of various experimental conditions.

• •Controller: The TEMI 1500 controller imported from Sanwontech in South Korea and the self-developed Siemens control system are used, equipped with RS232, RS485, and Ethernet communication ports.
• •Programmable control: supports setting experimental programs, such as heating, cooling, holding time, etc., and executing multiple program settings.Support advance reservation for power on function.
• •Multiple languages optional: English, Korean, Russian, Chinese, and Japanese.
• •Remote monitoring: Using SAMWON-EZNET network remote technology to achieve remote control, the test chamber can be monitored at any time and emails can be sent to users' PCs and phones, enhancing convenience.

The specific control system of the test chamber may vary depending on the model, so it is necessary to carefully read the Sanwood Environmental Test Chamber Manual and follow safety operating procedures before use.

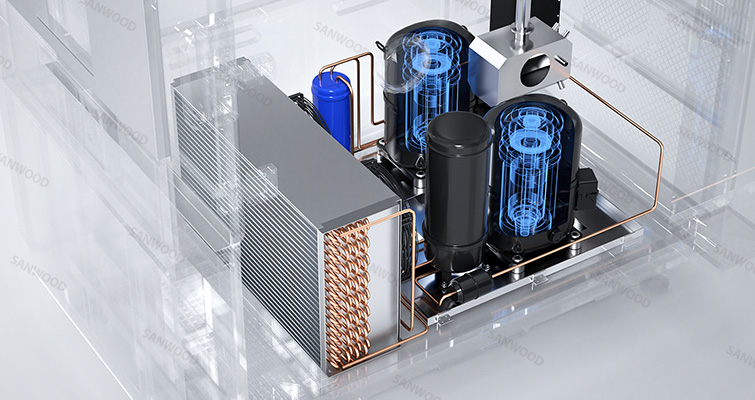

The refrigeration system of the test chamber is a complex and important system, and the quality of the refrigeration system is crucial for the accuracy and reliability of the test results.

• •Sanwood has developed hot air refrigerant defrosting technology, which effectively melts the frost on the evaporator by injecting high-temperature and high-pressure refrigerant vapor into the heat exchanger inside the test chamber. This not only ensures that the evaporator does not frost, but also greatly reduces the energy consumption of the equipment.
• •The refrigeration unit adopts international famous brands and cooperates with Japan's Eginomiya and the US Sporan to develop EPV series and XUP series quick opening solenoid valves for energy-saving systems, with an all-weather service life of over 15 years. And began to develop the new Danfoss AKV series throttling electronic expansion valve system, which is more efficient and energy-saving.
• •Optimizing the layout of the refrigeration system adopts VRF (refrigerant flow control) technology based on PID cold end output principle to achieve low-temperature energy-saving operation, which can reduce energy consumption by 30% under low-temperature conditions.
• •The refrigeration system adopts modular design, achieving low failure rate,less welding joints, high refrigeration efficiency, good reliability, simple maintenance, and low repair costs.
