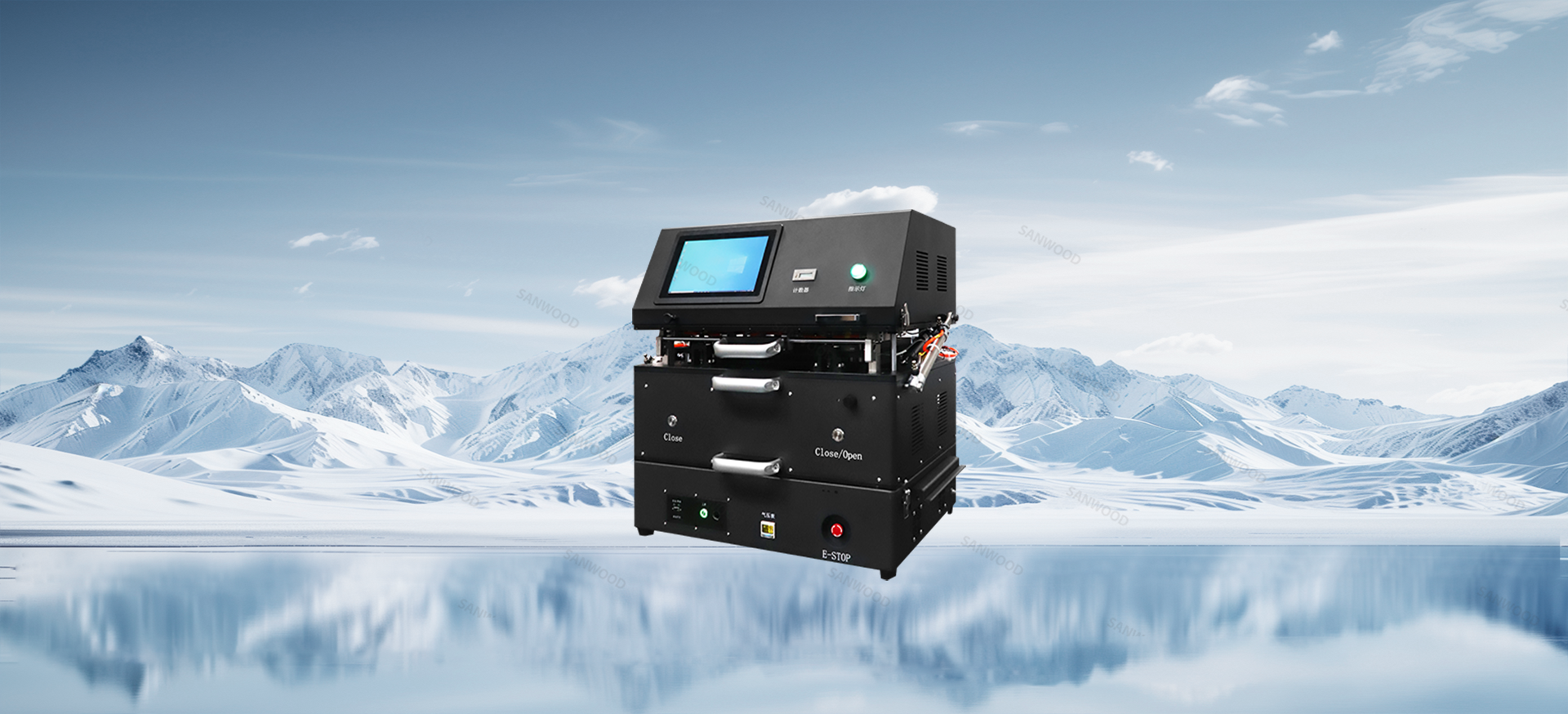

AI Server BP Board Tester

AI Server BP Board Testers are specialized systems developed to verify backplane electrical performance and connection reliability. With the transition to high-speed technologies such as PCIe Gen6 and PAM4 signaling, signal integrity has become the critical challenge. The fixture itself must minimize insertion loss, reflections, and crosstalk to ensure that measured results accurately reflect DUT (Device Under Test) performance rather than fixture-induced errors.

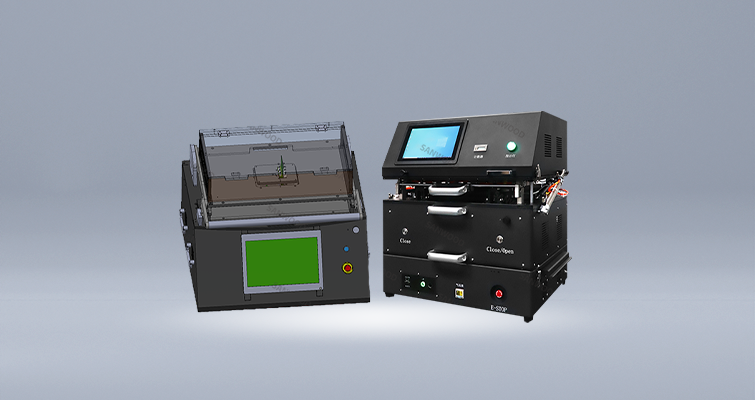

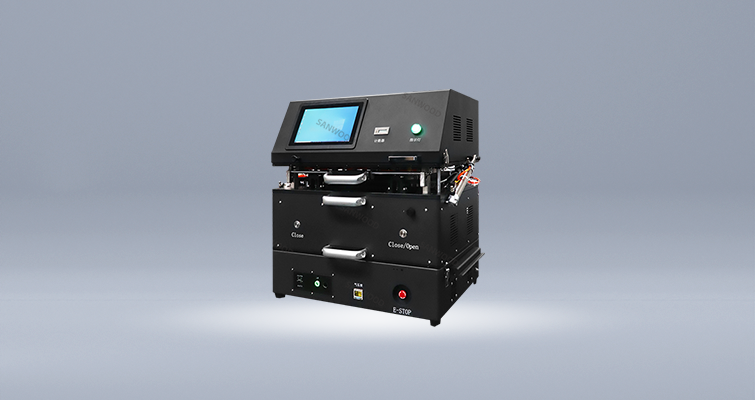

AI Server BP Board Tester

AI Server BP Board Testers are specialized systems developed to verify backplane electrical performance and connection reliability.

Advantages

The core advantages of AI server backplane test fixtures are reflected in the following aspects:

Excellent Signal Integrity: Supports PCIe Gen6 PAM4 signaling with strict control of insertion loss, impedance, crosstalk, and reflections for accurate and reliable test results.
Reduced Operating Costs: Minimizes rework, after-sales issues, customer complaints, and production downtime, helping reduce hidden operational costs.
High-Efficiency Automated Testing: Supports intelligent non-destructive connector insertion and removal. First-pass yield exceeds 92% and supports multiple backplane testing methods.
Accelerated R&D and Production: Identifies potential defects early, reduces development misjudgments, shortens time-to-market, and improves market competitiveness.

Application fields

AI Server Backplane Test Fixtures are specialized systems developed to verify backplane electrical performance and connection reliability. Can be applied to the following aspects：
