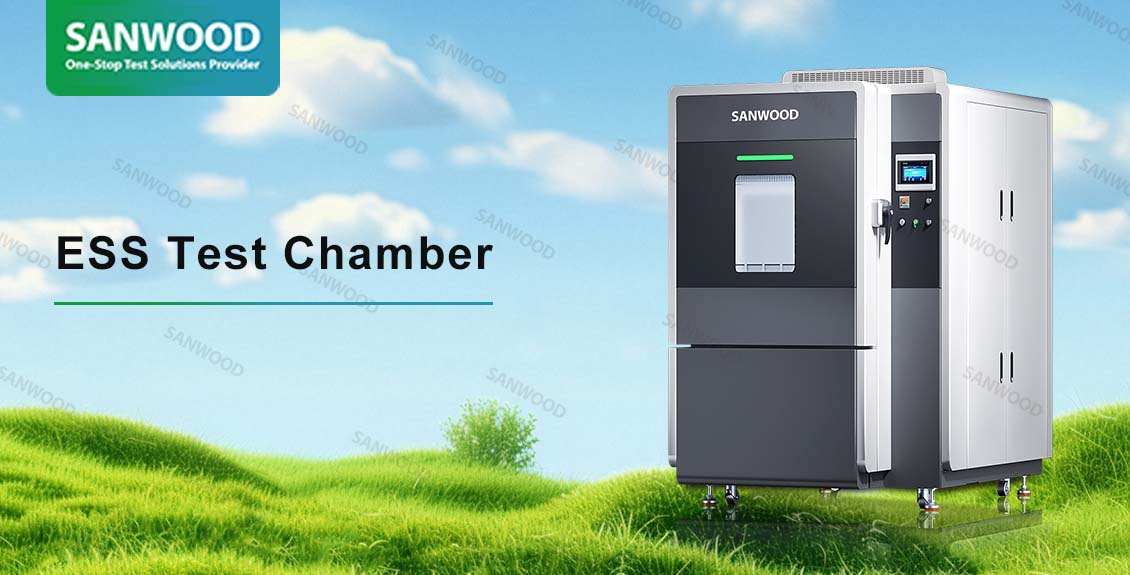

IEC60068-2-14 Temperature Test: Sanwood Technology ESS Test Chamber

When AI servers are performing large-scale arithmetic operations around the clock in data centers, and when edge computing nodes are experiencing drastic fluctuations in the temperature difference between day and night in the field, their internal GPUs, CPUs, and other core components are undergoing a severe test brought about by temperature changes. The Sanwood ESS Test Chamber complies with the IEC60068-2-14 test standard, providing reliable protection for AI servers under conditions of rapid temperature change.

As an important specification in the field of environmental testing, the IEC 60068-2-14 standard specifies the requirements for temperature change testing, with clear descriptions of the temperature range, rate of temperature change and other key parameters, aimed at assessing the ability of a product to withstand rapid changes in the ambient temperature environment.

The basic parameters of the ESS Test Chamber of Sanwood:

Temperature control range:-70℃～+180℃

Temperature fluctuation:±0.5℃

Cooling rate: 155.0℃～-55.0℃

(linear or non-linear:5.0℃, 10.0℃, 15.0℃, 20.0℃/min)

Heating rate: -55.0℃～155.0℃

(linear or non-linear:5.0℃,10.0℃,15.0℃,20.0℃/min)

Temperature uniformity:1.5℃(-40.0℃～+100.0℃)

                                             2.0℃(+100.1℃～+180.0℃ or -40.0℃～-70.0℃)

Equipment features:

Early detection and elimination of defective components or process problems, reducing the failure rate of products in subsequent use.

2. Fast temperature change shortens the testing time and improves the production efficiency.

3. Advanced multi-stage compounding cold balance technology, refrigerant flow control technology effectively achieve energy saving of more than 30%.

4. Temperature stress screening test chamber adopts aluminum sheet to verify the load capacity of the machine.

5. the use of environmentally friendly refrigerants (such as R449A, R508B), to reduce the impact on the environment.

The ESS Test Chamber independently developed by Sanwood Technology adopts imported components from internationally renowned brands. It can set up a variety of stress screening (fast temperature change rate) 5℃~25℃/min test conditions, accurately matching the IEC60068-2-14 standard, which helps to find potential defects of AI servers in a timely manner and improve efficiency, and is combined with energy-saving design and environmentally friendly refrigerants, which not only reduces costs but also practices the green concept. It is an indispensable partner in the R&D and production process of AI servers. As a supplier of environmental test chambers, Sanwood Technology also owns High and Low Temperature Chambers, Thermal Shock Test Chambers, AGREE Test Chambers and other equipment.

If you need to know more about professional testing solutions, please contact Sanwood , we will customize professional services for you.
